Audio Limiter new Edition

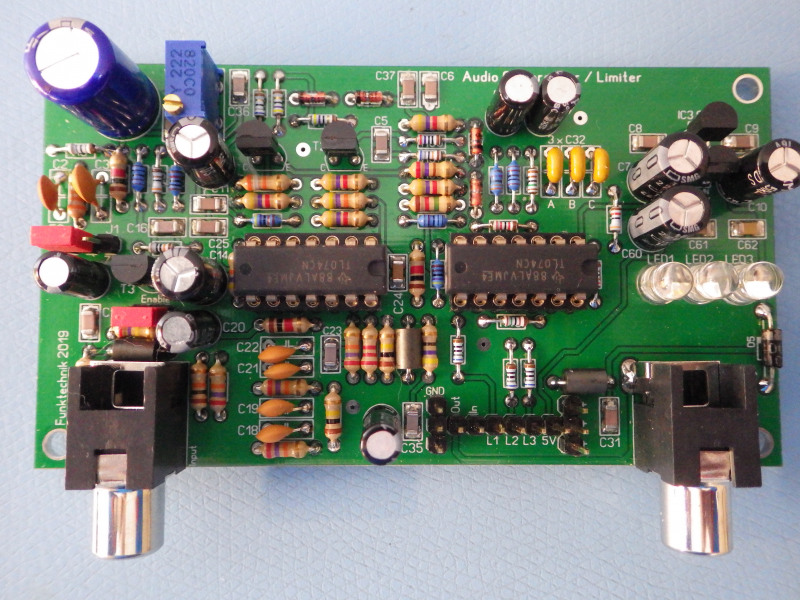

Board now available! SMD components are assembled on request.
Scheme, assembly plan download
Available now!
Specs:
- Comp. Thres. 170mV RMS -12dBu
- Maximum Input 12VRMS +24dBu
- Pre-emphasis 50us / 75us or None
- Output Level 775mV RMS 0dBu
- Freq. Response 30Hz-15kHz rel. to pre-emph
- S/N -80dBu
- Distribution Less than 0.2% THD at limiting
- Attack Time Less than 1ms
- Release Time AGC controlled
- Indicators 3 LED’s for limiting -6dB, 0dB, +6dB
- DC Power 11-16 VDC regulated
- Audio Sockets Lumberg
- DC Output +5VDC/100mA Applicatios(RDS Coder)
- Size PCB 100 x 55mm
- No Signal overshooting
- Simple to adjust Trimmer 20-turns
- Only a few parts to solder
